Samsung Smart TV Red Standby Light Blinking 5 Times: Fix It Step by Step Power Drain Reset — Disconnect External Devices — Cold Boot — Capacitor Inspection — Service Menu Reset

This is the fix that works most often. Samsung Smart TVs store residual charge in their power supply capacitors that can hold a fault state even after the TV appears to be off. Simply unplugging and replugging within a few seconds does not clear this residual charge. A proper drain reset does.

1. Turn the TV off using the remote — or press the physical power button on the TV if the remote isn’t responding.
2. Unplug the TV’s power cable from the wall socket completely — not from the TV end, from the wall.

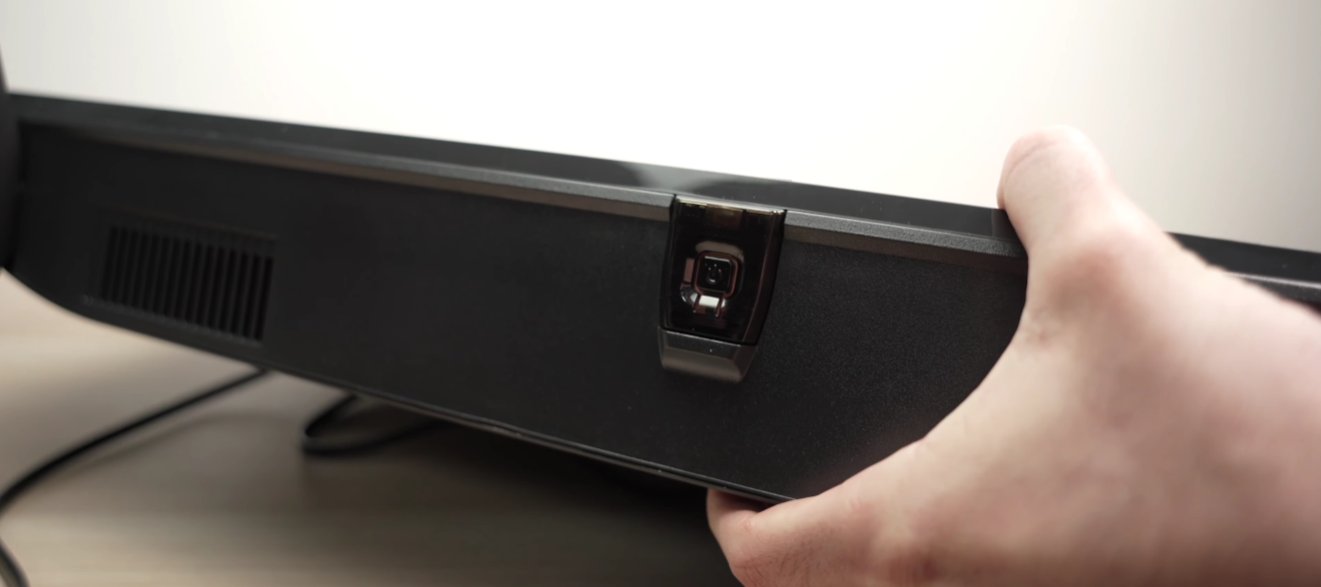

3. Press and hold the physical power button on the TV itself (not the remote) for 30 seconds. This actively discharges the residual power stored in the internal capacitors rather than waiting for it to drain passively.
4. Release the button and wait an additional 60 seconds with the TV still unplugged.

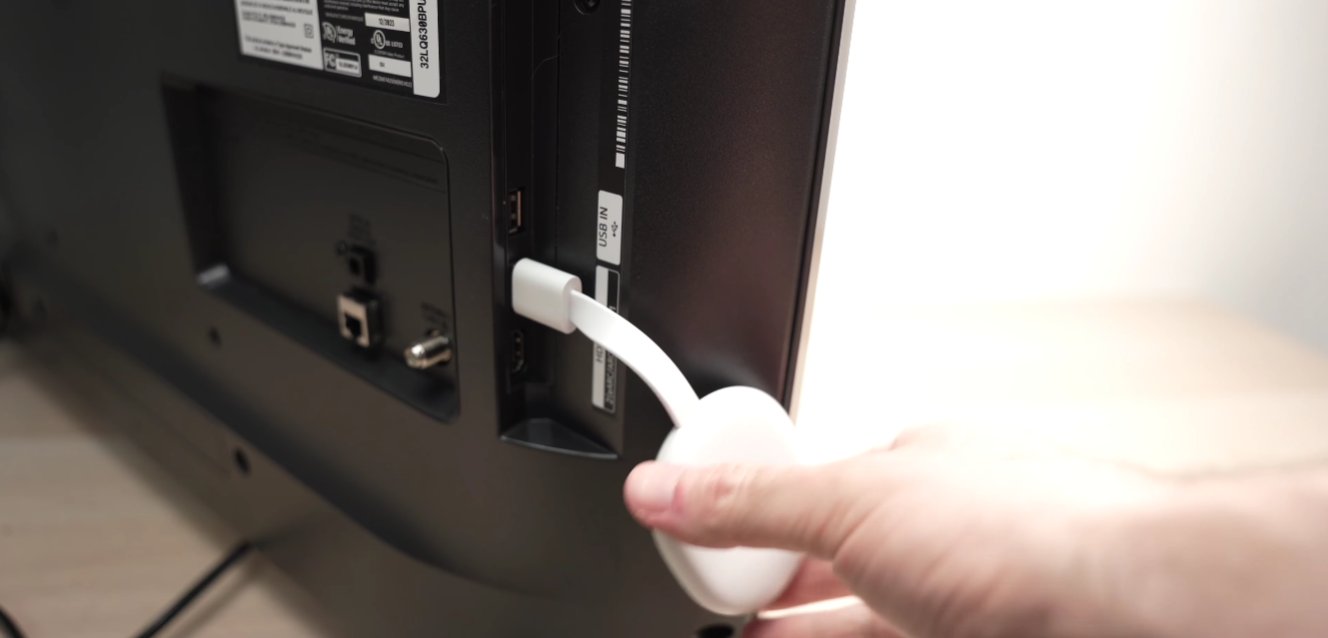

5. While the TV is unplugged, disconnect every single device connected to it — HDMI cables, USB devices, optical audio cables, antenna cables, everything. Remove them all.
6. Plug only the power cable back in — nothing else yet.
7. Press power and observe the standby light carefully.
8. If the TV powers on fully without the five-blink pattern, reconnect your external devices one at a time, turning the TV off and on between each reconnection. If the five-blink pattern returns after reconnecting a specific device, that device is causing a power draw fault — replace or repair it.

If the five-blink pattern persists with nothing connected except power, move to Fix 2.

Samsung TVs support a cold boot sequence performed via the remote that resets the TV’s startup firmware independently of the power drain. This works even when the TV won’t reach its home screen.

1. Ensure the TV is in its five-blink standby state (plugged in, not fully on).
2. On the Samsung remote, press and hold the Power button for 10–15 seconds without releasing.
3. The TV may attempt to restart during this hold — continue holding through any attempted restart.
4. After releasing, the TV should perform a cold boot startup sequence — a slower, more thorough startup that bypasses cached startup states.
5. If the TV reaches the Samsung logo screen and continues loading to the home menu, the reset succeeded.
6. Alternatively, try the remote reset sequence: Press Mute → Volume Up → Return → Volume Up → Return → Volume Up → Return in rapid sequence. On some Samsung models this triggers a factory service mode reset.

If neither remote method changes the five-blink behaviour, move to Fix 3.

Before opening the TV, rule out external power quality as the cause. A wall socket delivering inconsistent or low voltage — particularly in areas with unstable electricity supply — can cause the TV’s power supply board to detect out-of-range voltages even when the board itself is healthy.

1. Try plugging the Samsung TV into a completely different wall socket — ideally in a different room on a different circuit. Extension leads and power strips can introduce voltage drops that affect sensitive electronics.
2. Inspect the TV’s power cable for visible damage — kinking near the plug, fraying at either end, or scorch marks near the connector.
3. If you have a multimeter, set it to AC voltage (VAC) and measure the socket output — it should read between 210–240V (India) or 110–120V (US).
4. Try the TV on the new socket and observe whether the five-blink pattern clears.

If all external factors check out and the five-blink pattern persists, the fault is almost certainly inside the TV’s power supply board. The most common physical causes — a blown inline fuse or visually swollen capacitors — can be identified by a careful home user with basic tools.

1. Unplug the TV completely and lay it face-down on a flat surface protected by a blanket to avoid screen damage.
2. Remove the back panel screws using your Phillips screwdriver — typically 10–20 screws around the perimeter. Keep them in a small dish.
3. Carefully lift the back panel away and set it aside.

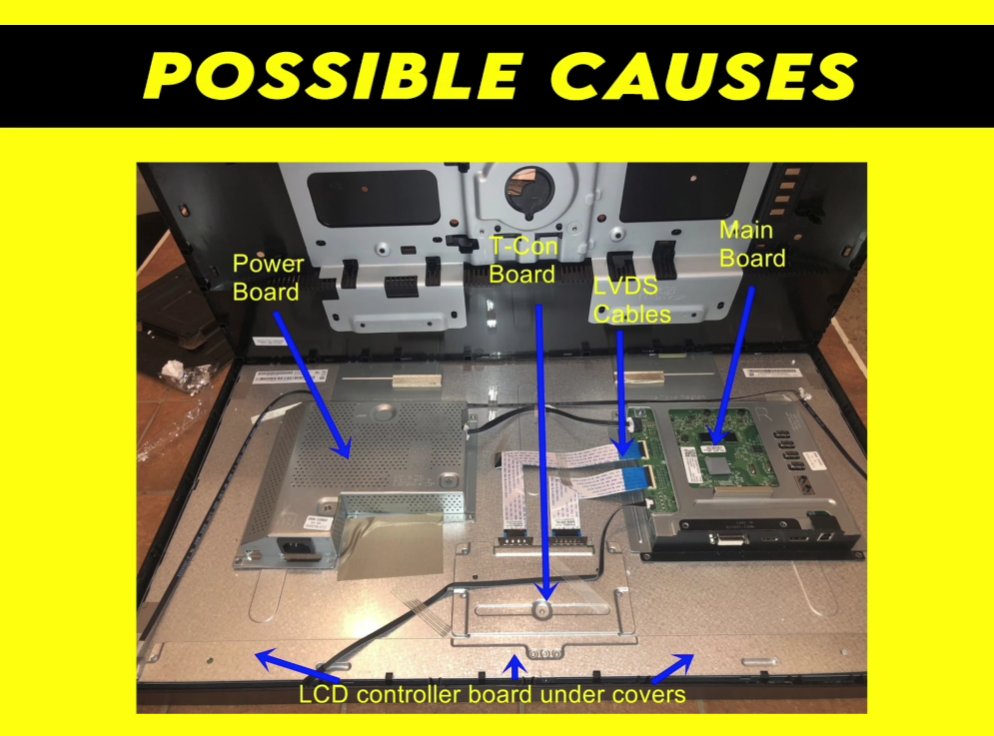

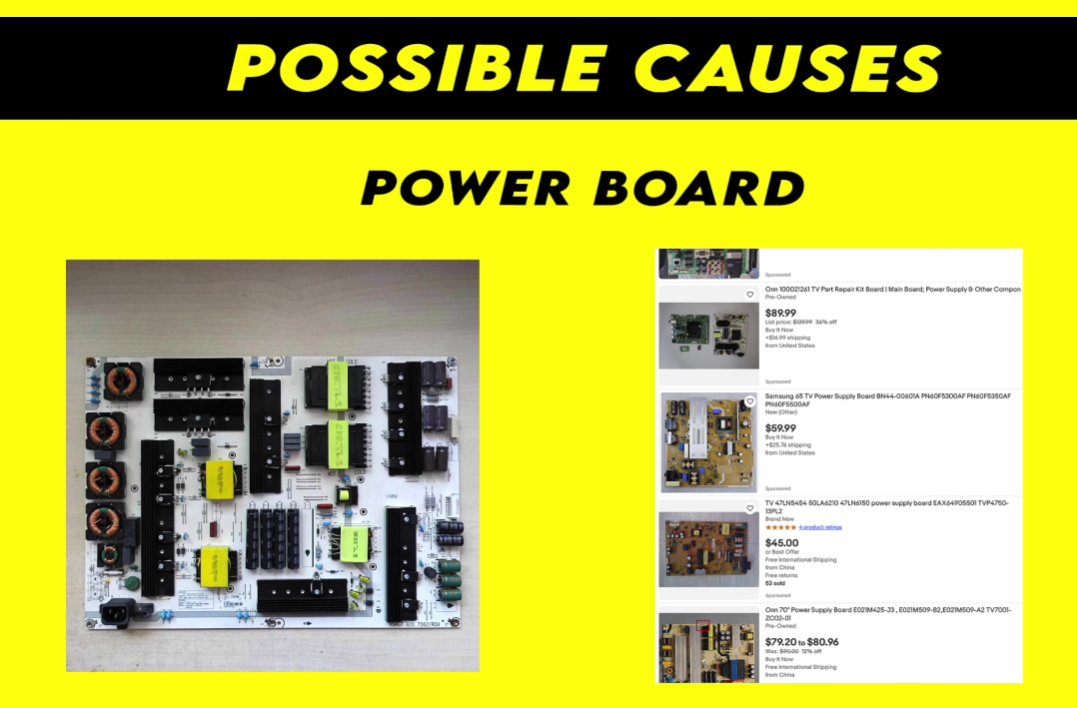

4. Locate the power supply board — the board closest to where the power cable enters the TV, recognisable by the large cylindrical capacitors mounted on it.
5. Wait for capacitors to discharge — use your multimeter set to DC voltage and measure across the largest capacitors before touching anything. Wait until the reading is below 50V.
6. Once safe, inspect the capacitors closely with your flashlight:
   • A healthy capacitor has a perfectly flat top — level across its entire surface.
   • A bulging or domed top, a split or cracked top, or visible brown residue at the base indicates a failed component.
7. Look also for the board fuse — a small glass or ceramic fuse in a fuse holder near the power input. A blown fuse will show a visibly broken filament inside.
8. If you find visually swollen capacitors, replace them with exact-specification replacements — matching the voltage rating and capacitance value printed on the original.
9. A blown fuse should be replaced with an identical-specification fuse only — never a higher-rated one.

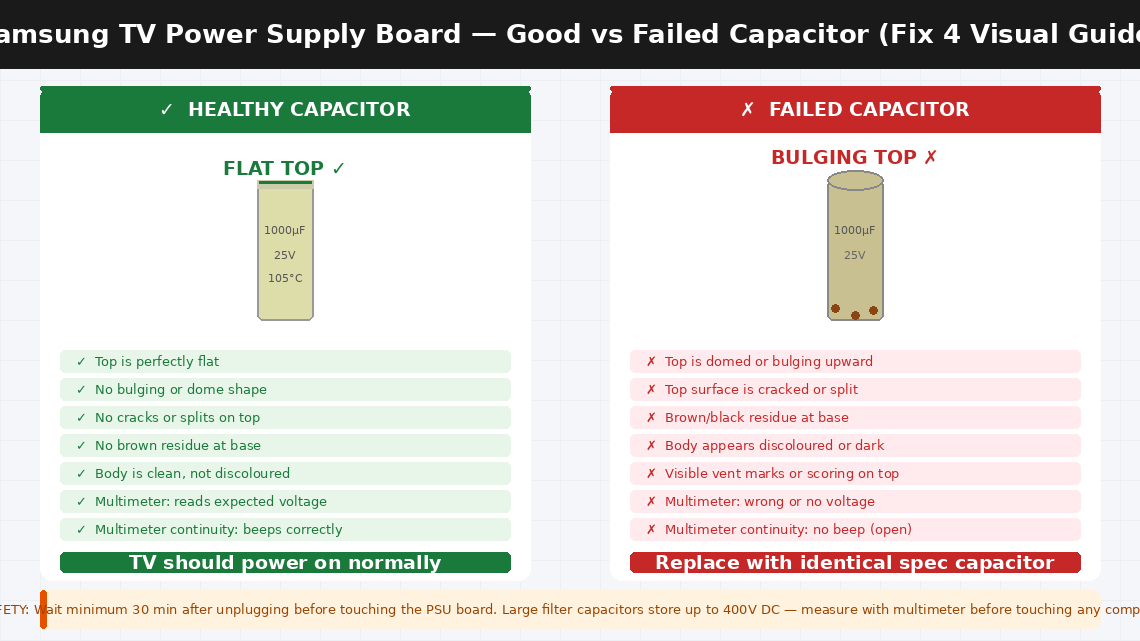

A failed electrolytic capacitor is the most common physical cause of the 5-blink fault in Samsung TVs that are 3–6 years old. The comparison above shows exactly what to look for — particularly the domed or bulging top surface which is the clearest visual indicator of failure. The flat-top healthy capacitor on the left is what every capacitor on the board should look like. Always use a multimeter to confirm discharge before touching any component.

If the TV occasionally reaches a partial boot state before the five-blink fault triggers, Samsung TVs include a hidden service menu that can perform a deeper reset than the consumer settings menu allows.

1. With the TV in standby (not fully on), press the following sequence on the Samsung remote: Mute → 1 → 8 → 2 → Power. On some models the sequence is Info → Menu → Mute → Power.
2. If the service menu opens, navigate to Factory Reset or Reset All and confirm.
3. The TV will restart with a clean firmware state.
4. Note: the service menu sequence varies by model year. If the sequences above don’t work, search “Samsung [your model number] service menu” on Samsung’s support community at samsung.com/community for the correct combination.
